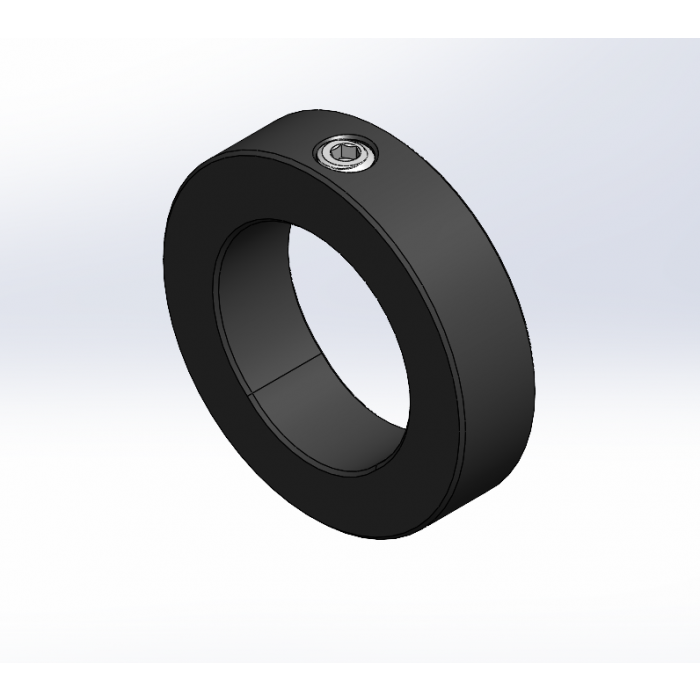

圓柱形元件轉光滑外徑轉接環：
- 適用於固定光纖準直器、小型半導體雷射、準直管、六角形光混合棒和其他圓柱形組件；
- 轉成光滑無螺紋外徑可將組件整合到各種鏡架，並將組件中心對準於機構中心。
*請小心安裝組件，過度使力鎖緊螺絲可能會造成損壞。
圓柱形元件轉 Ø 0.5"(12.7mm)外徑：

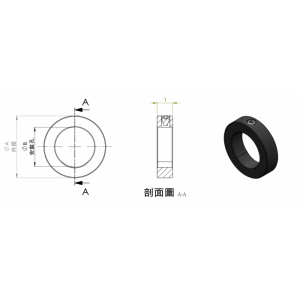

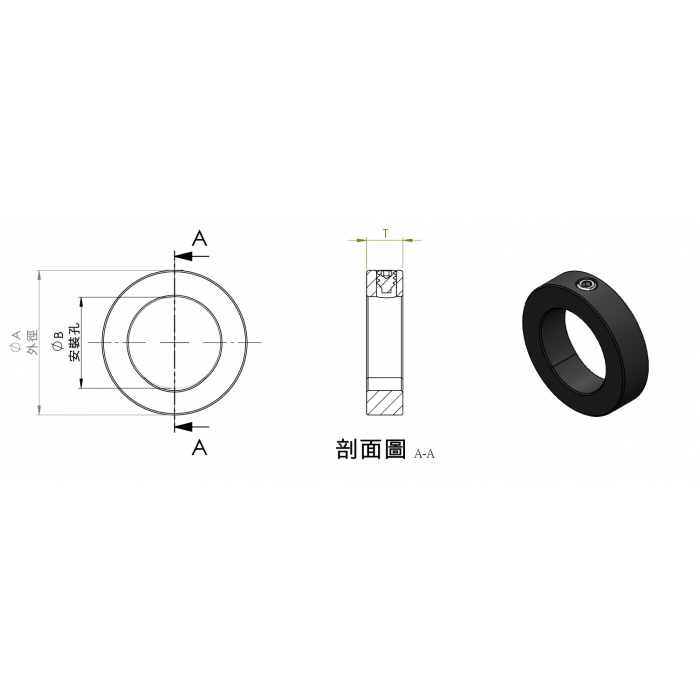

| 型號 | 外徑A (mm) |
搭配元件尺寸 (安裝孔ØB) |
T |
| CADP-E05C2M | 12.7 (0.5") |
Ø2 | 6 |
| CADP-E05C2.5M | Ø2.5 | ||
| CADP-E05C3M | Ø3 | ||
| CADP-E05C3.2M | Ø3.2 | ||
| CADP-E05C3.5M | Ø3.5 | ||
| CADP-E05C4M | Ø4 | ||
| CADP-E05C5M | Ø5 | ||
| CADP-E05C5.72M | Ø5.72 | ||
| CADP-E05C6M | Ø6 | ||
| CADP-E05C6.35M | Ø6.35(0.25") | ||
| CADP-E1C3.5M | 25.4 (1") |
Ø3.5 | |
| CADP-E1C4M | Ø4 | ||
| CADP-E1C5.72M | Ø5.72 | ||
| CADP-E1C8M | Ø8 | ||
| CADP-E1C9M | Ø9 | ||
| CADP-E1C9.5M | Ø9.5 | ||
| CADP-E1C10M | Ø10 | ||
| CADP-E1C11M | Ø11 | ||
| CADP-E1C12M | Ø12 | ||
| CADP-E1C0.5 | Ø12.7(0.5") | ||
| CADP-E1C14M | Ø14 | ||
| CADP-E1C15M | Ø15 | ||
| CADP-E1C16M | Ø16 | ||
| CADP-E1C18M | Ø18 | ||
| CADP-E30C20M | 30 | Ø20 | |
| CADP-E30C22M | Ø22 | ||
| CADP-E30C24M | Ø24 | ||
| CADP-E1.5C25M | 38.1 (1.5") |
Ø25 | 8 |
| CADP-E1.5C1 | Ø25.4(1") | ||
| CADP-E1.5C26M | Ø26 | ||
| CADP-E1.5C28M | Ø28 | ||
| CADP-E1.5C30M | Ø30 | ||
| CADP-E1.5C32M | Ø32 | ||
| CADP-E2C12M | 50.8 (2") |
Ø12 | 10 |
| CADP-E2C15M | Ø15 | ||
| CADP-E2C16M | Ø16 | ||
| CADP-E2C18M | Ø18 | ||
| CADP-E2C20M | Ø20 | ||
| CADP-E2C26M | Ø26 | ||
| CADP-E2C27M | Ø27 | ||
| CADP-E2C28M | Ø28 | ||
| CADP-E2C30M | Ø30 | ||
| CADP-E2C30.5M | Ø30.5 | ||
| CADP-E2C32M | Ø32 | ||
| CADP-E2C34M | Ø34 | ||
| CADP-E2C35M | Ø35 | ||
| CADP-E2C36M | Ø36 | ||
| CADP-E2C38M | Ø38 | ||
| CADP-E2C40M | Ø40 |
SM1為英制細牙：1.035"-40
SM1.5為英制細牙：1.535"-40
SM2為英制細牙：2.035"-40
SM3為英制細牙：3.035"-40
SM30為公制細牙：M30.5-0.5
C-mount為英制牙，搭配一般鏡頭使用：1"-32
T-mount為公制牙：M42-0.75
RMS為標準物鏡牙：0.8"-36
MITUTOYO物鏡牙/OLYMPUS的BD系列物鏡：M26x0.706
NIKON物鏡牙：M25x0.75
ZEISS物鏡牙：M27x0.75
